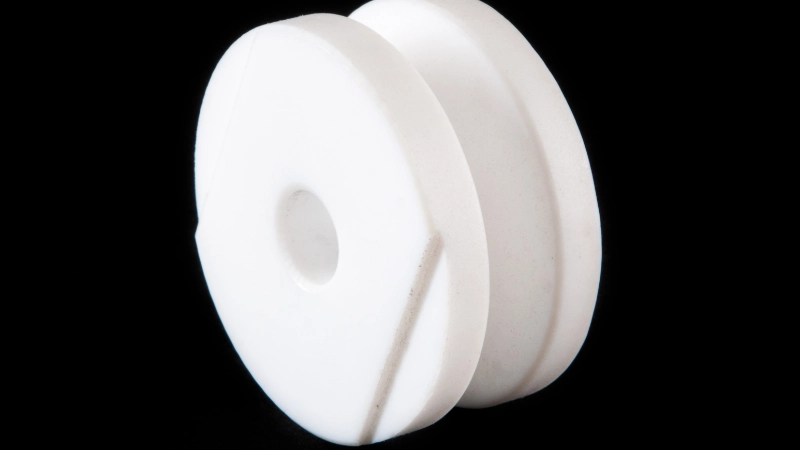

Tetron S
Tetron S is a virgin PTFE grade offering ultimate non-stick properties and broad chemical resistance, available in rod, sheet, and cylinder formats.
Specifications
- Minimum Operating Temperature
- -200°C
- Maximum Operating Temperature
- 260°C
- Food Grade
- Yes
- Drinking Water Approved
- No
- Tensile Strength (MPa)
- 28
- Thermal Expansion (µm/m.K)
- 129
- Coefficient of Friction
- 0.06
- Chemical Resistance
- High
- Formats Available
- Rod, Sheet, Cylinder
Tetron S is a virgin polytetrafluoroethylene (PTFE) supplied by Dotmar, delivering the highest level of non-stick performance and chemical inertness. Its service temperature spans from -200°C to 260°C, making it suitable for extreme environments.
Key properties include an extremely low coefficient of friction (0.06), tensile strength of 28 MPa, and high chemical resistance. The thermal expansion coefficient is 129 x 10⁻⁶ per °C, aiding dimensional stability under thermal cycling.
Dotmar provides Tetron S in rod, sheet, and cylinder forms, precision-machined to your requirements. Our expertise in engineering plastics ensures consistent quality and technical support for every project.
Key Features
- Virgin PTFE for ultimate non-stick and chemical inertness
- Service temperature range: -200°C to 260°C
- Extremely low coefficient of friction: 0.06
- High chemical resistance
- Tensile strength: 28 MPa
- Available in rod, sheet, and cylinder formats
Tetron S is commonly used in chemical processing equipment, gaskets, seals, bearings, and electrical insulation. Its non-stick and chemically inert nature suits food processing machinery, high-temperature applications, and any environment requiring reliable, low-friction surfaces.
