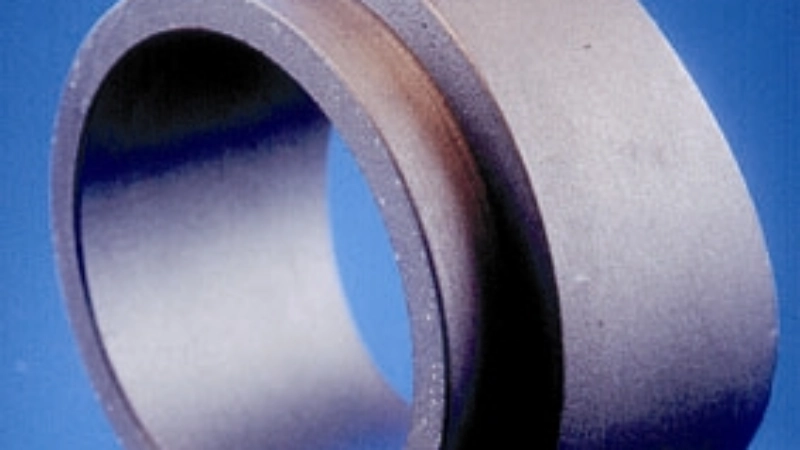

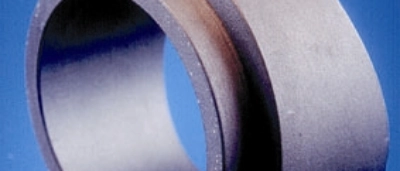

Tetron C
Tetron C is a carbon-filled PTFE compound that provides enhanced creep resistance, anti-static properties and improved wear performance for high-reliability industrial applications.
Specifications
- Minimum Operating Temperature
- -200°C
- Maximum Operating Temperature
- 260°C
- Food Grade
- No
- Drinking Water Approved
- No
- Tensile Strength (MPa)
- 17.6
- Thermal Expansion (µm/m.K)
- 70
- Coefficient of Friction
- 0.12
- Chemical Resistance
- High
- Formats Available
- Rod, Sheet
Tetron C is a carbon-filled PTFE grade within Dotmar's Tetron range of advanced engineering plastics. The addition of carbon filler significantly improves the material's creep resistance and wear behaviour while imparting anti-static characteristics, making it distinct from unfilled PTFE.
This grade offers a low coefficient of friction of 0.12 and maintains its properties across a wide service temperature range from -200°C to 260°C. Its high chemical resistance and dimensional stability suit demanding environments. Dotmar supplies Tetron C in rod and sheet formats, backed by expert machining and fabrication capabilities to meet precise component requirements.
Key Features
- Carbon-filled PTFE for enhanced wear and creep resistance
- Anti-static properties for sensitive applications
- Low coefficient of friction of 0.12
- Service temperature range from -200°C to 260°C
- High chemical resistance
- Available in rod and sheet formats
Tetron C is commonly used in seals, bearings, gaskets and wear pads where low friction, creep resistance and anti-static behaviour are critical. Its chemical inertness makes it suitable for chemical processing equipment, while its dimensional stability benefits precision components in semiconductor, aerospace and automotive industries.
