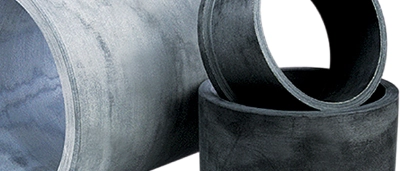

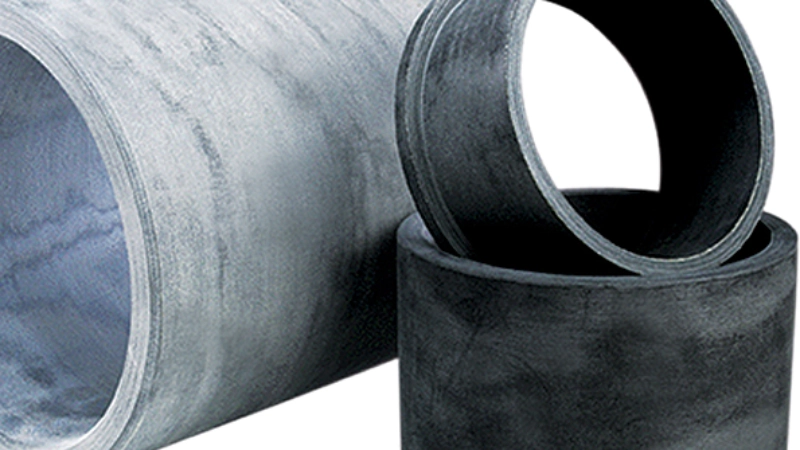

Orkot C320 (TLG)
Orkot® C320 is manufactured from medium weave fabrics with excellent mechanical strength and possessing dimensional stability when immersed in water, acids and chemical solutions. C320 grade incorporates graphite for improved dry running capability.
Specifications
- Minimum Operating Temperature
- -30°C
- Maximum Operating Temperature
- 130°C
- Food Grade
- No
- Drinking Water Approved
- No
- Tensile Strength (MPa)
- 55
- Thermal Expansion (µm/m.K)
- 90 - 100
- Coefficient of Friction
- 0.2
- Chemical Resistance
- Medium
- Formats Available
- Sheet
Orkot C320 (TLG) is a high-performance thermoset laminate from the Orkot family, engineered for wear and friction applications. It combines reliable mechanical strength with low friction and medium chemical resistance, making it suitable for use in wet or lubricated environments.
Dotmar supplies Orkot C320 (TLG) as fully machined components or raw sheet, backed by technical expertise to help you select the right plastic for your bearing, wear pad or structural application.
Key Features
- Service temperature range: -30°C to 130°C
- Low coefficient of friction: 0.2
- Tensile strength: 55
- Thermal expansion: 90 – 100
- Medium chemical resistance
- Available in sheet form
Orkot C320 (TLG) Applications & Uses
Typical applications for Orkot C320 (TLG) include marine and industrial bearings, wear strips, thrust washers and guide rails. It is widely used in pump and valve components, offshore equipment, and general machinery where low friction and moderate chemical exposure are required.
