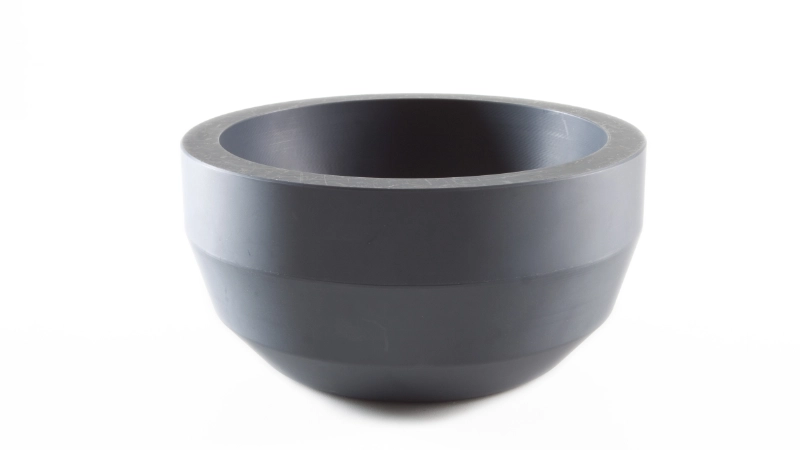

Nylatron GSM
Nylatron GSM is a cast nylon PA6 grade filled with molybdenum disulphide (MoS2), engineered to enhance wear resistance and reduce friction in demanding industrial applications.
Specifications
- Minimum Operating Temperature
- -30°C
- Maximum Operating Temperature
- 90°C
- Food Grade
- No
- Drinking Water Approved
- No
- Tensile Strength (MPa)
- 82
- Thermal Expansion (µm/m.K)
- 80
- Coefficient of Friction
- 0.35
- Chemical Resistance
- Medium
- Formats Available
- Rod, Sheet
Nylatron GSM is an engineering-grade cast nylon 6 (PA6) that incorporates finely dispersed molybdenum disulphide (MoS₂) particles throughout the polymer matrix. This solid lubricant significantly improves the material’s friction and wear characteristics, making it an ideal choice for moving parts.
Key properties include a low coefficient of friction of 0.35, excellent tensile strength of 82 MPa, and good dimensional stability with a thermal expansion coefficient of 80 x 10⁻⁶ m/m°C. Nylatron GSM can operate continuously at temperatures up to 90°C and withstands cold environments down to -30°C, with medium resistance to chemicals.
Dotmar supplies Nylatron GSM in rod and sheet formats, precision-machined to customer specifications. Our local Australian stock and fabrication expertise ensure short lead times and consistent quality for wear-prone components across many industries.
Key Features
- Low friction coefficient of 0.35 for reduced wear
- High tensile strength of 82 MPa
- Continuous service temperature range from -30°C to 90°C
- Internally lubricated with MoS₂ for maintenance-free operation
- Good machinability with tight tolerances
- Available as rod and sheet for versatile fabrication
Nylatron GSM Applications & Uses
Nylatron GSM is widely used in bearing pads, bushings, wear strips, gears, rollers, and thrust washers across industries such as materials handling, mining, construction, and general engineering. Its self-lubricating nature makes it particularly suited for applications where external lubrication is impractical or prohibited.
