Polystone PG100
Polystone PG100 is a high-density polyethylene (HDPE) engineering plastic supplied in rod and sheet forms. It combines high chemical resistance with a broad service temperature range from -50°C to 80°C.
Specifications
- Minimum Operating Temperature
- -50°C
- Maximum Operating Temperature
- 80°C
- Food Grade
- Yes
- Drinking Water Approved
- Yes
- Tensile Strength (MPa)
- 24
- Thermal Expansion (µm/m.K)
- 150-230
- Coefficient of Friction
- 0.15
- Chemical Resistance
- High
- Formats Available
- Rod, Sheet
Polystone PG100 is a premium HDPE material formulated to meet the rigorous demands of tank fabrication and the latest HDPE pipe standards. It offers an excellent balance of mechanical strength, low friction, and thermal stability, making it a versatile choice for industrial applications.
Supplied by Dotmar, this grade delivers consistent performance in chemically aggressive environments, with a tensile strength of 24 MPa and a minimal coefficient of friction of 0.15. Its wide operating temperature range and controlled thermal expansion ensure reliability across diverse conditions.
Key Features
- High chemical resistance for aggressive environments
- Service temperature range from -50°C to 80°C
- Tensile strength of 24 MPa
- Low coefficient of friction of 0.15
- Thermal expansion coefficient of 150–230 x 10⁻⁶ /K
- Available in rod and sheet formats

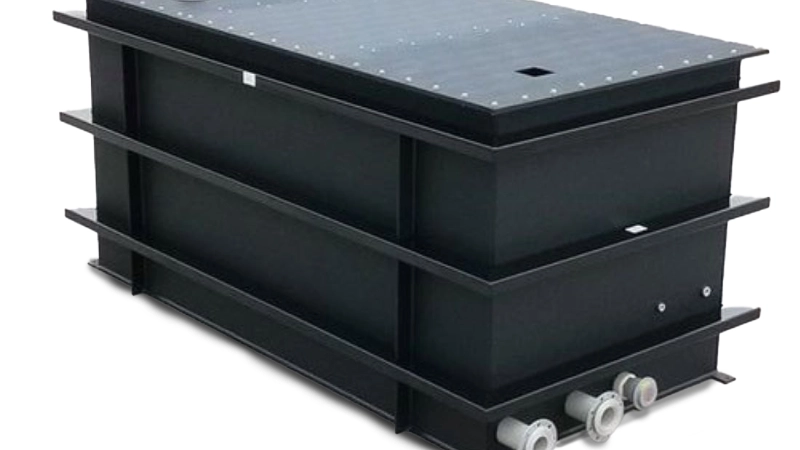

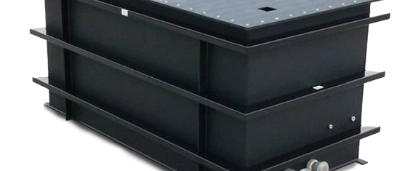

Polystone PG100 is extensively used in chemical tank construction, industrial pipe systems, and fluid handling equipment where resistance to corrosive substances is critical. It is also found in water treatment plants, food processing machinery, and marine applications.
