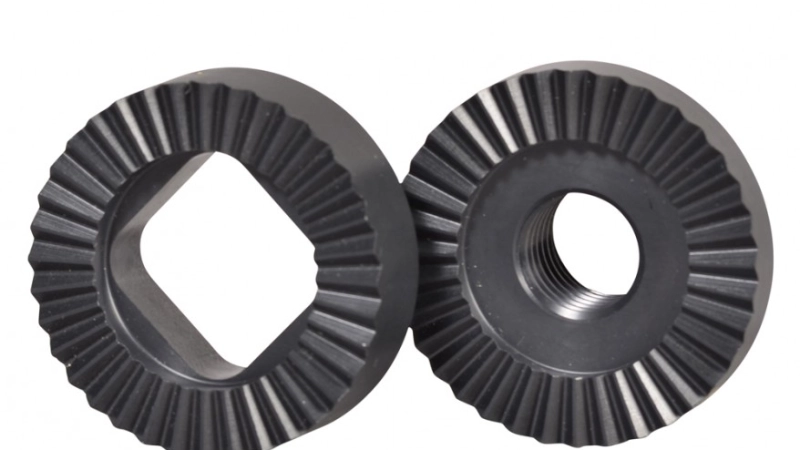

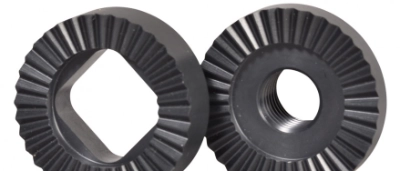

Ketron PEEK CA30
Ketron CA30 PEEK is a 30% carbon-fibre reinforced polyetheretherketone (PEEK) grade delivering high stiffness, wear resistance, and thermal stability for demanding industrial applications.
Specifications
- Minimum Operating Temperature
- -20°C
- Maximum Operating Temperature
- 250°C
- Food Grade
- No
- Drinking Water Approved
- No
- Tensile Strength (MPa)
- 140
- Thermal Expansion (µm/m.K)
- 25
- Coefficient of Friction
- 0.2
- Chemical Resistance
- High
Ketron CA30 PEEK is a high-performance thermoplastic from the polyetheretherketone family, reinforced with carbon fibre to enhance mechanical strength and dimensional stability. It offers a tensile strength of 140 MPa, a low coefficient of friction of 0.2, and high chemical resistance, making it suitable for demanding industrial environments.
Dotmar supplies Ketron CA30 PEEK as machined and fabricated components, backed by technical expertise and reliable Australian stock, ensuring you receive quality parts tailored to your application requirements.
Key Features
- Continuous service temperature up to 250°C
- Minimum service temperature of -20°C
- Tensile strength of 140 MPa
- Low thermal expansion coefficient of 25 µm/m°C
- Coefficient of friction of 0.2
- High chemical resistance
Ketron CA30 PEEK is widely used for bearing cages, thrust washers, valve seats, and compressor wear rings in industries such as oil and gas, chemical processing, and aerospace, where high load-bearing capacity, thermal stability, and chemical resistance are critical.
